OD.L125B series narrow sliding door

OD.L125B series narrow sliding door

The L125B series of narrow-edge sliding doors are designed with modern minimalist aesthetics in mind. The extremely narrow 21mm visible surface creates a light and transparent visual effect. It combines the self-developed large-load-bearing silent pulleys and the anti-sway pulleys for the upper part of the leaf material of OUDE to reduce the swing of the door leaf while taking into account durability and stability in use. The design integrates push-pull/electric dual modes, supports remote control and special opening methods such as multi-leaf linkage and column-free corners, which not only meets traditional usage habits, but also adapts to the needs of smart home ecology. The design of inlaid glass guardrails further expands safety protection scenarios. This product is suitable for high-end residential balcony partitions, commercial space exhibition halls, office areas and other diverse scenarios. It improves space lighting and visual extensibility through extremely narrow frames, providing modern spaces with partition solutions that combine aesthetic value and functional innovation.

    Limit parameters


    Max.leaf height/length

    Depending on frame width and windload(approx.6m/3m)

    Max.leaf weight

    Depending on the number of wheels(approx.1000kg)

    Max.sliding leaf area

    approx.12sqm

    Max.fx leaf area

    approx.18sqm

    Product attributes


    Profile parameters

    Profile frame width: 125mm;
    Visible width: 21mm;
    Profile thickness: 2.5~3.0mm

    Performance parameters

    Wind pressure resistance level 9;
    Air tightness level 8;
    Water tightness level 5;
    Sound insulation 35dB;
    Thermal insulation u value minimum 2.8w/㎡k

    Hardware

    Oday hardware accessories;
    New pull-out lock;
    Patented ultra-high load-bearing silent pulley;
    Low-friction stainless steel rail,
    single leaf maximum 1000KG

    Size specification

    Opening leaf height ≤3500mm;
    Opening leaf width ≤3000mm

    Product Highlights

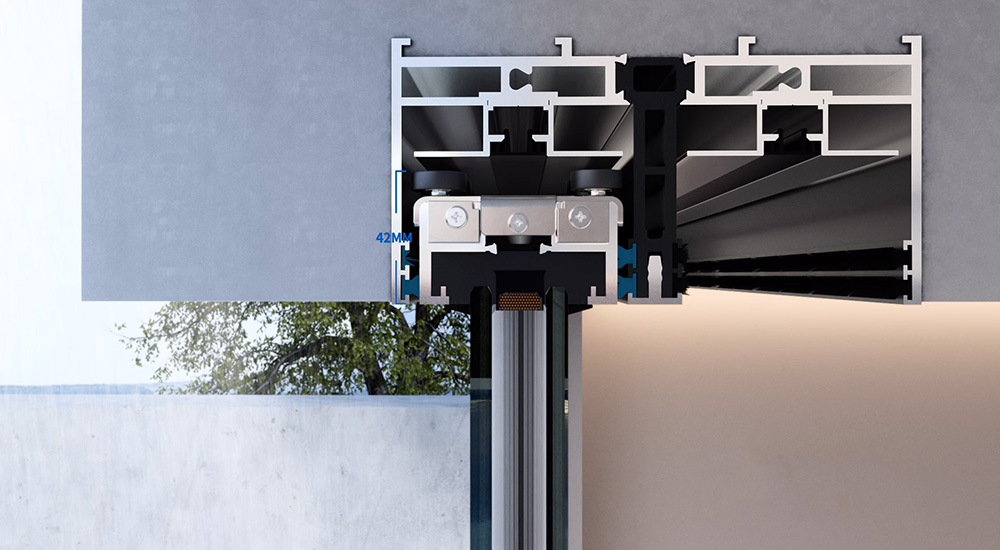

    Anti-balance wheel design
    01

    Anti-balance wheel design

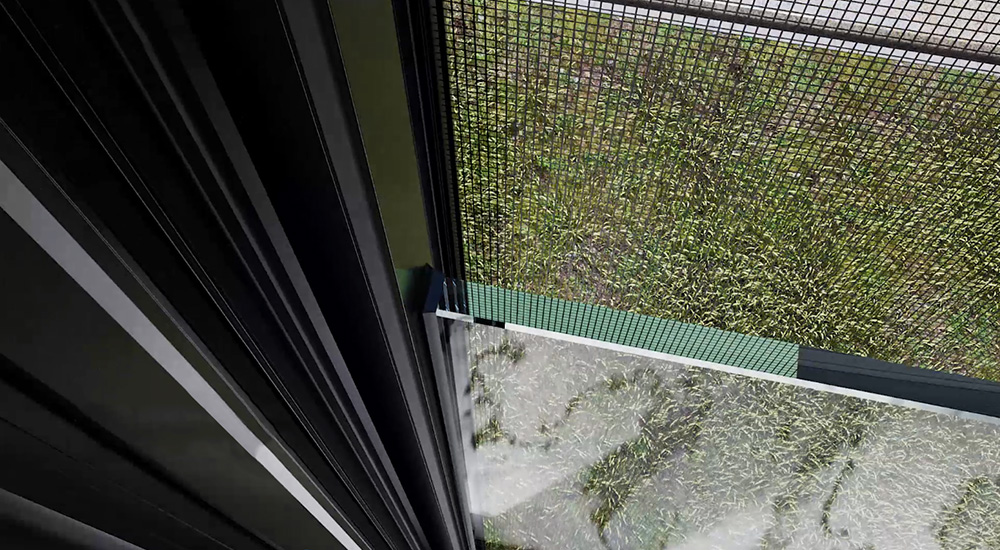

    Can be inlaid with glass guardrail
    02

    Can be inlaid with glass guardrail

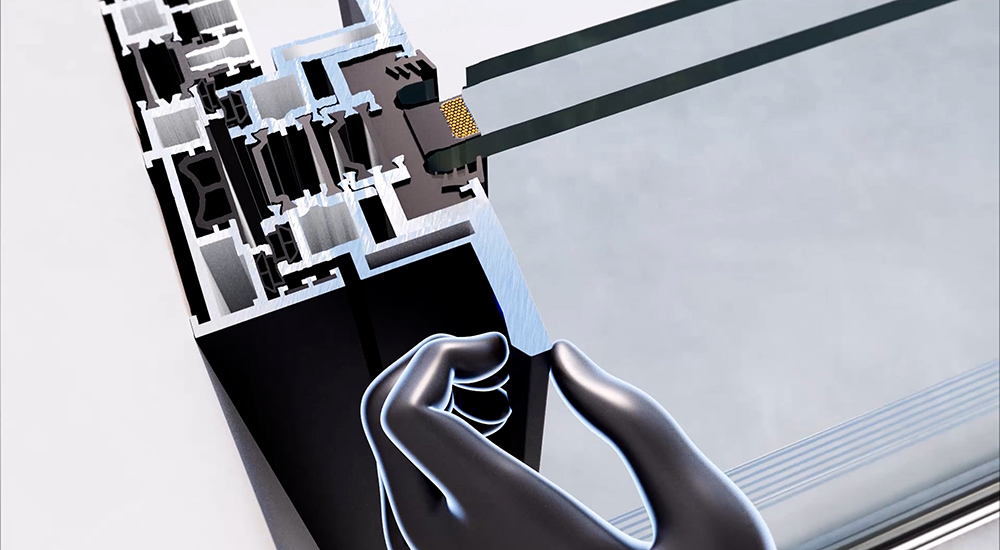

    Ergonomic handle
    02

    Ergonomic handle

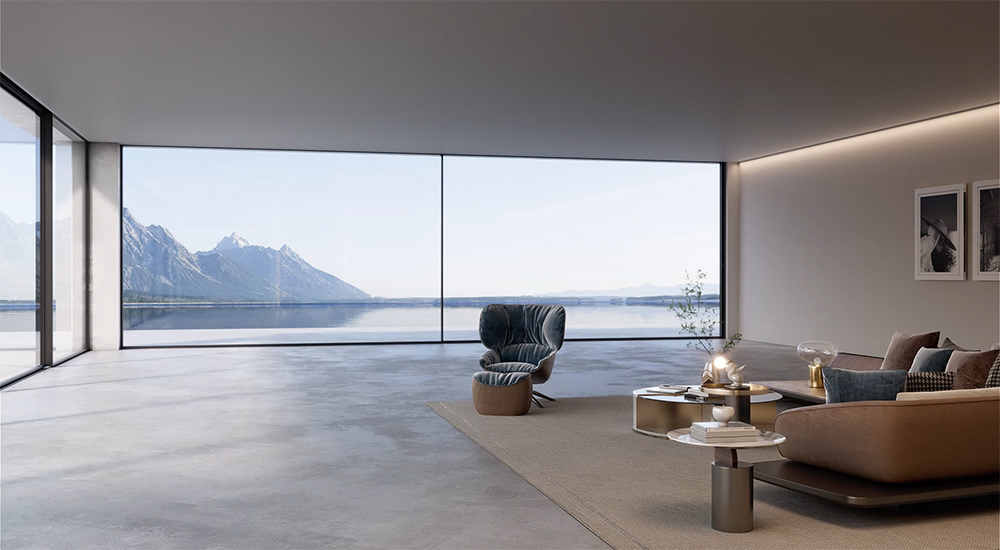

    Extremely narrow visible surface 21mm
    02

    Extremely narrow visible surface 21mm

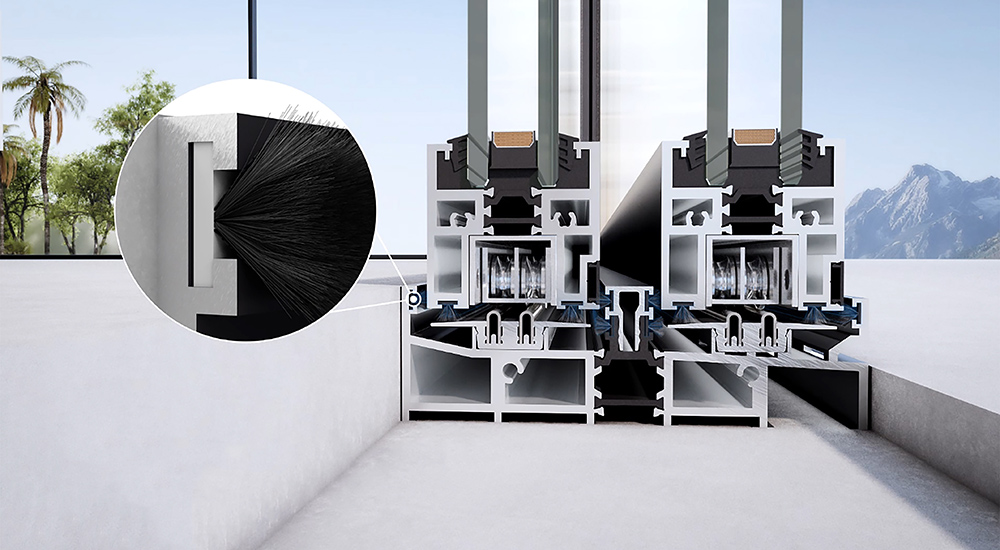

    High sealing and low friction cloth top
    02

    High sealing and low friction cloth top

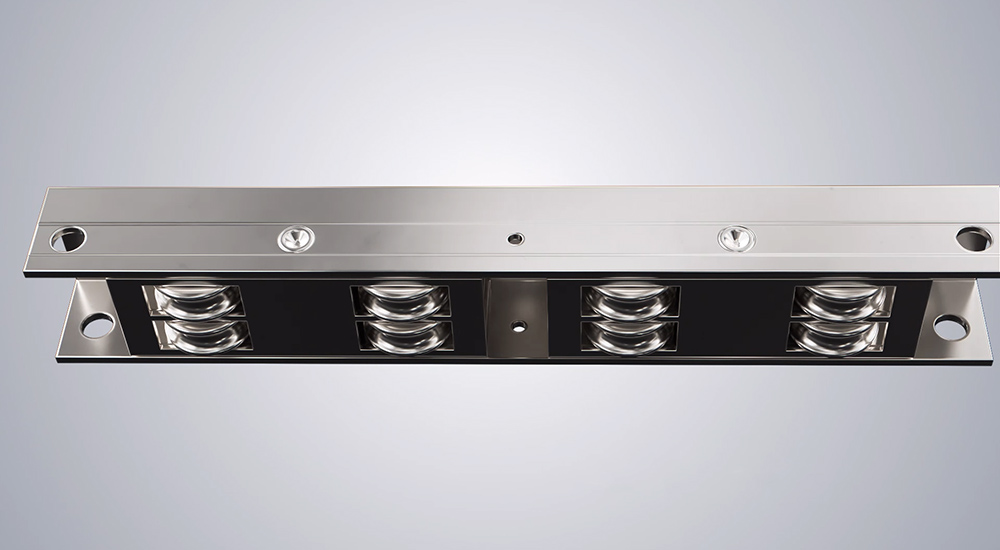

    Independently developed large load-bearing silent pulley
    02

    Independently developed large load-bearing silent pulley

    Opening method



    One open and one fixed
    01

    One open and one fixed

    Double open
    01

    Double open

    Three open
    01

    Three open

    Two open and one fixed
    01

    Two open and one fixed

    Four open
    01

    Four open

    Corner open 1
    01

    Corner open 1

    Corner open 2
    01

    Corner open 2

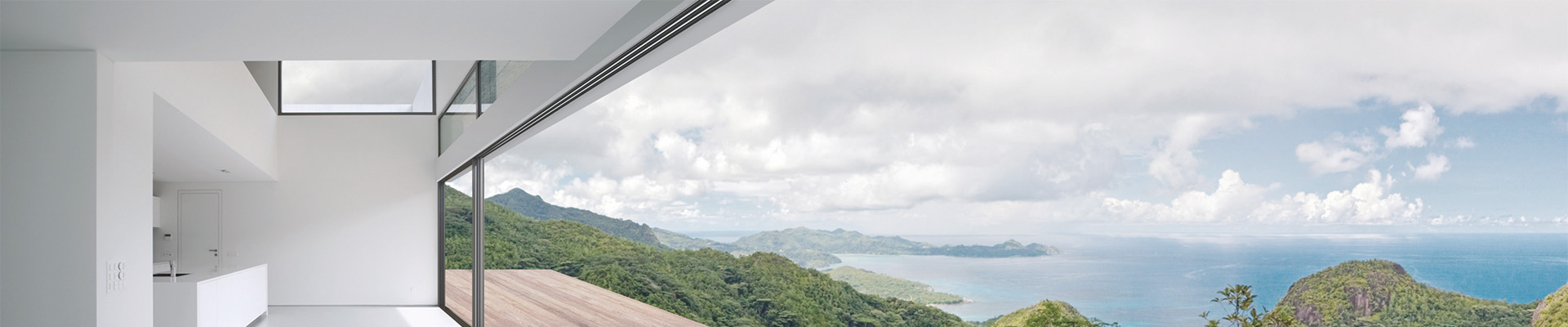

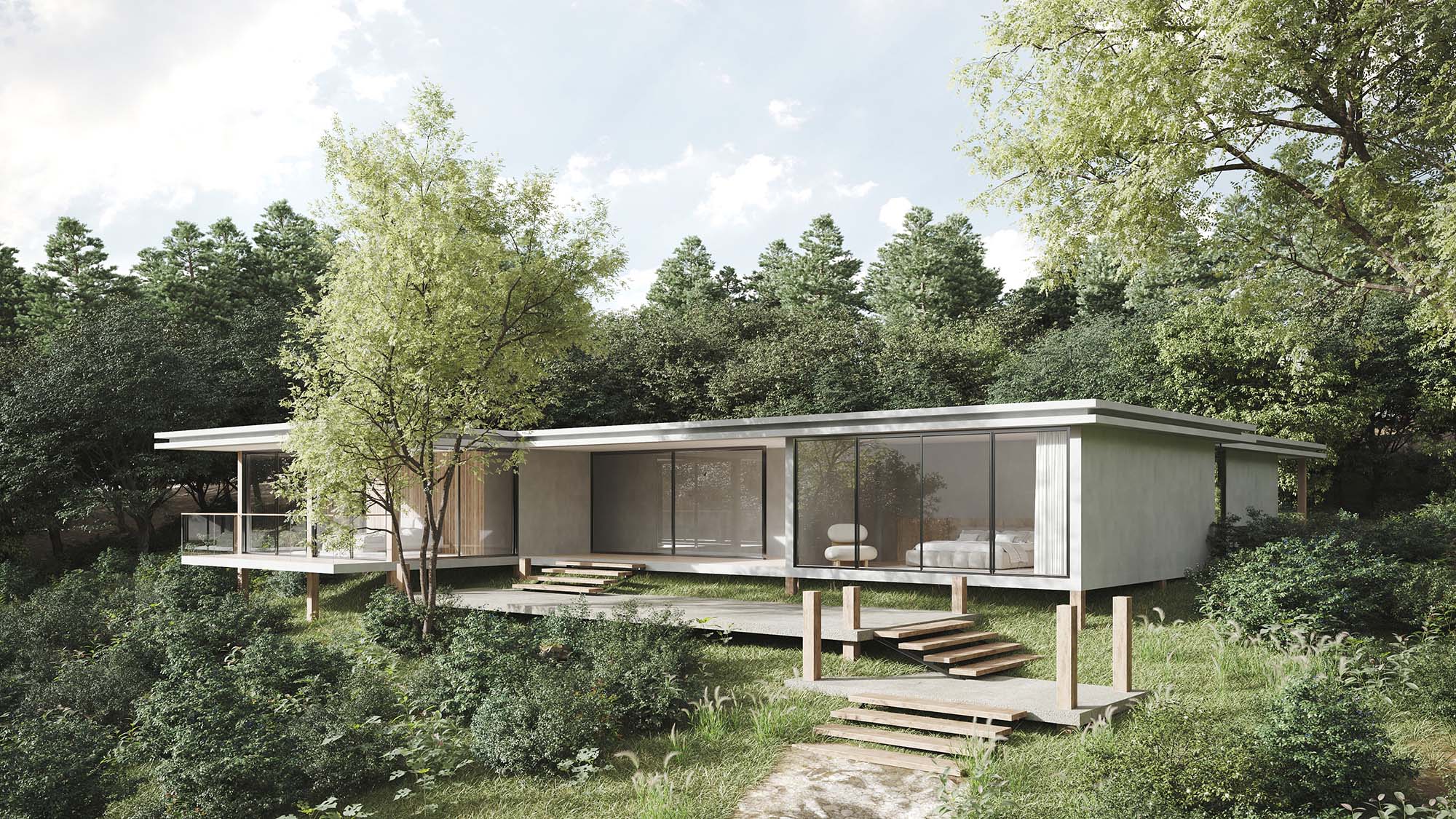

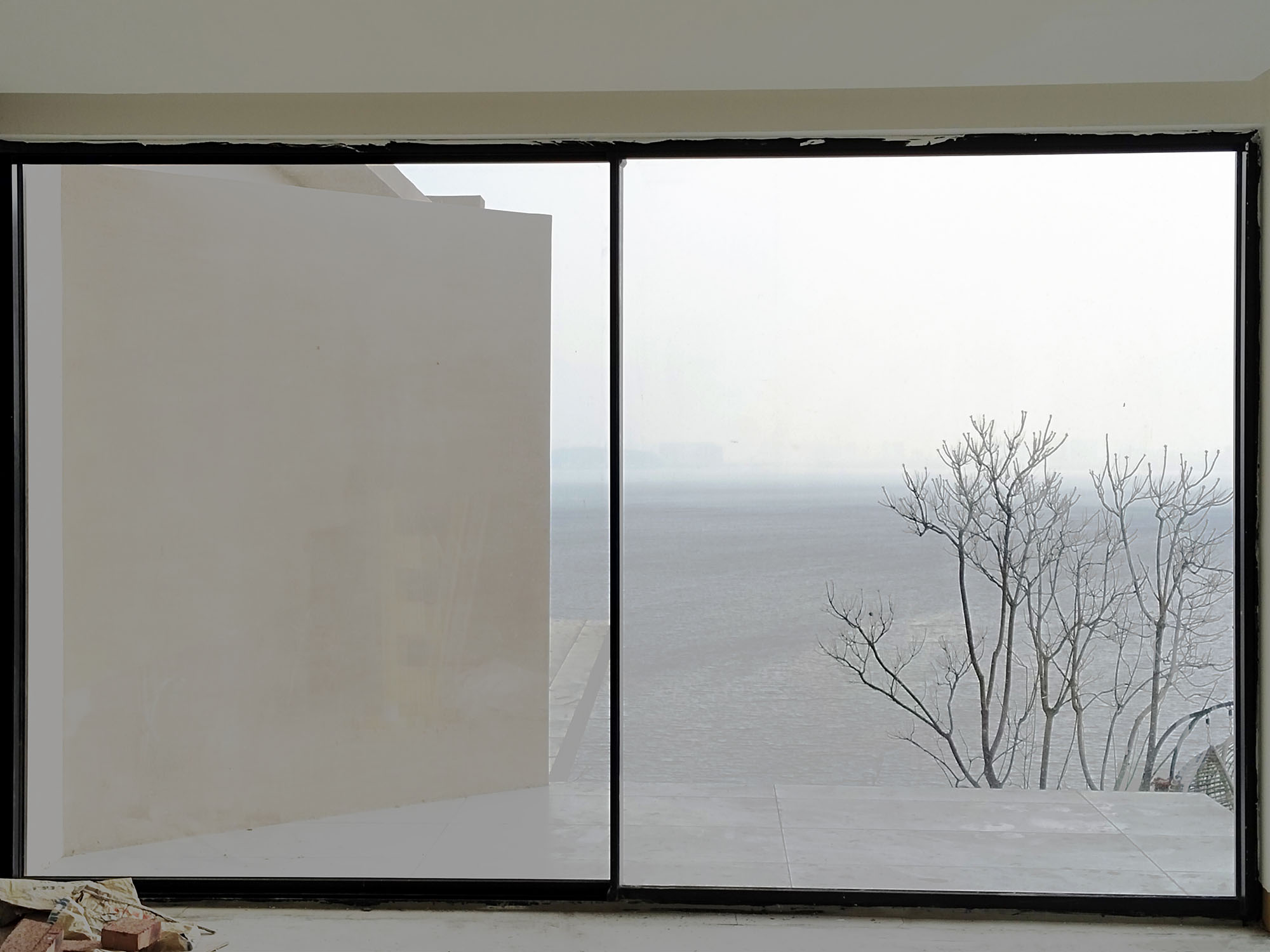

    Case Photos

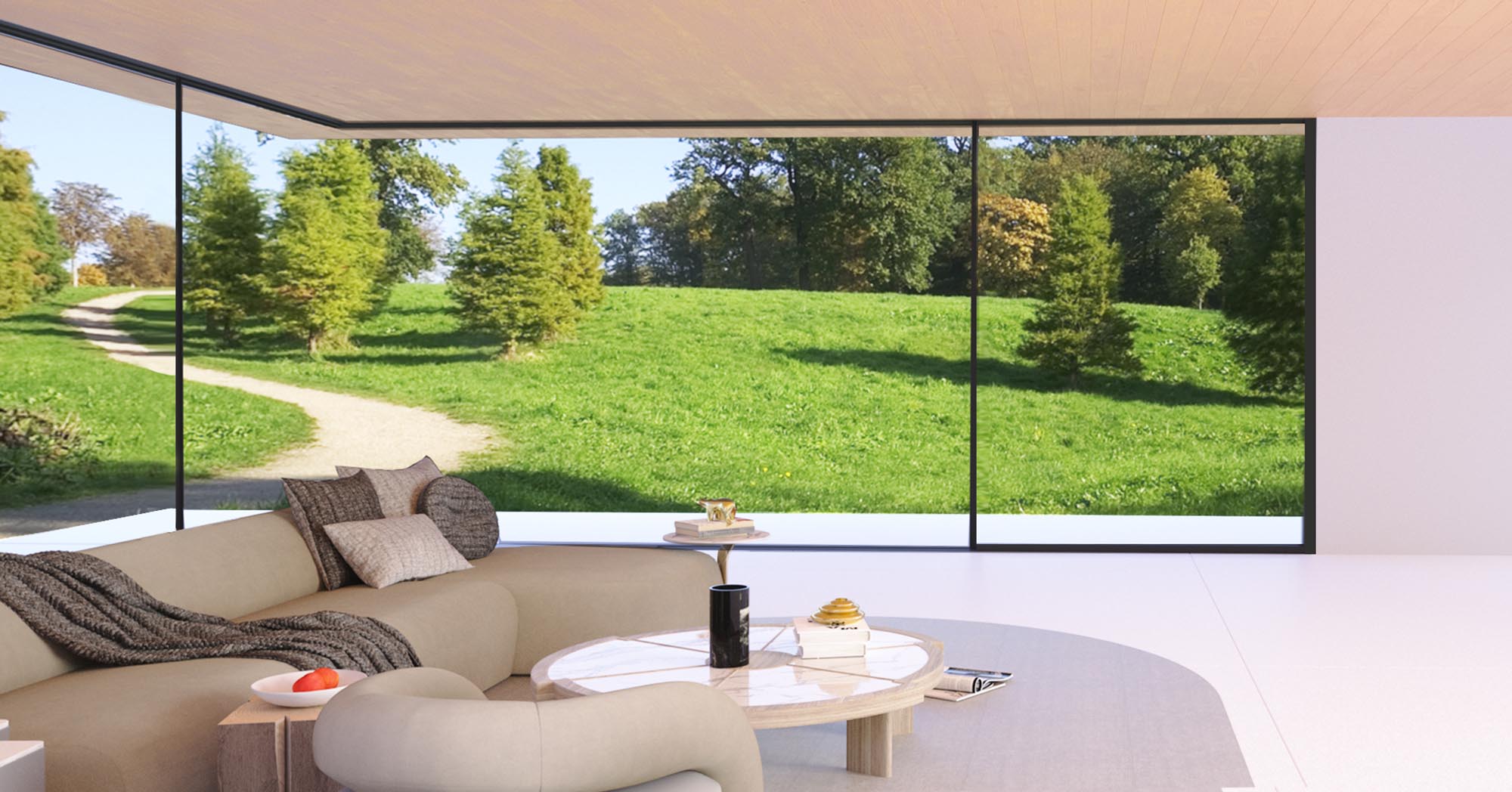

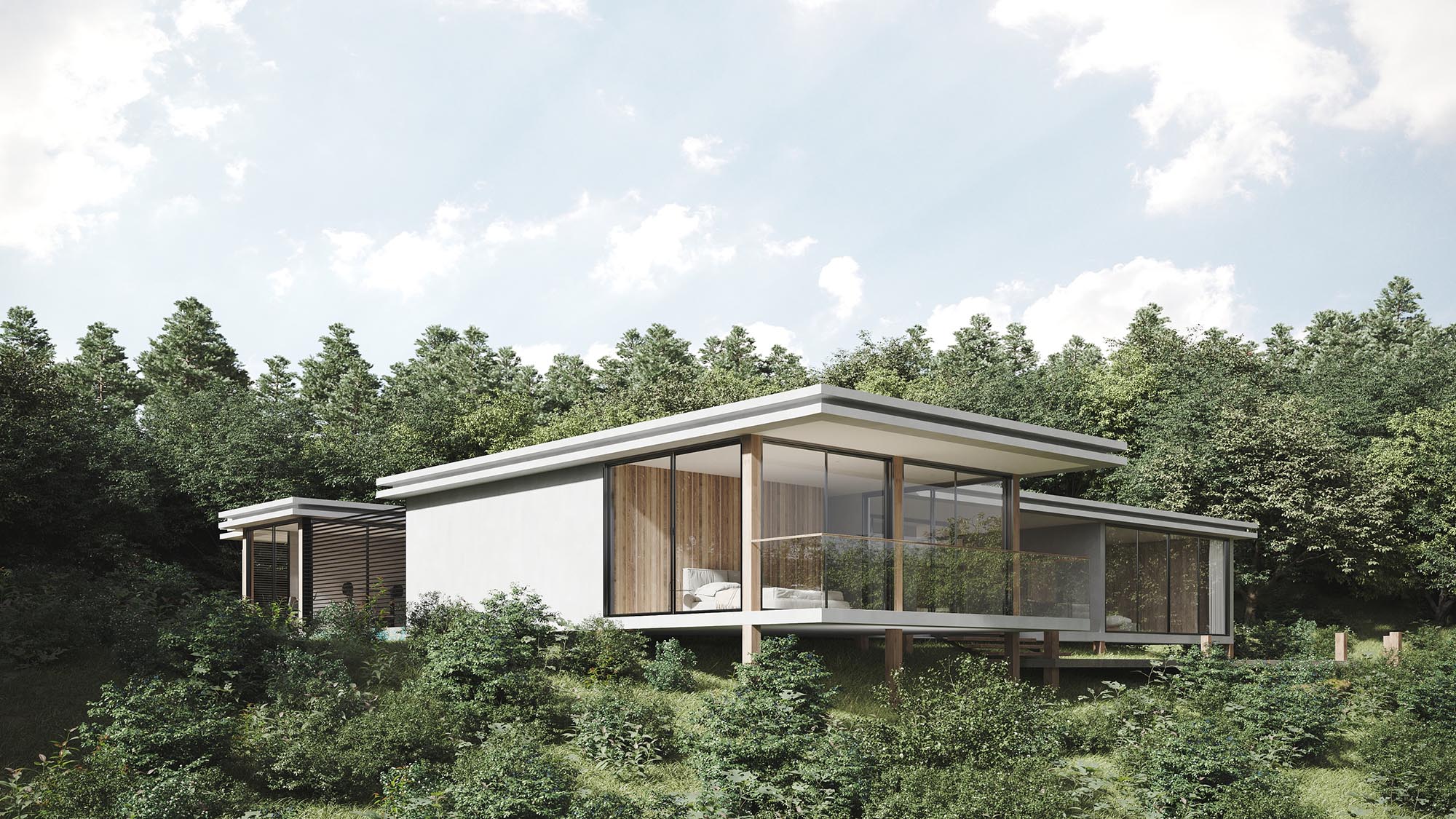

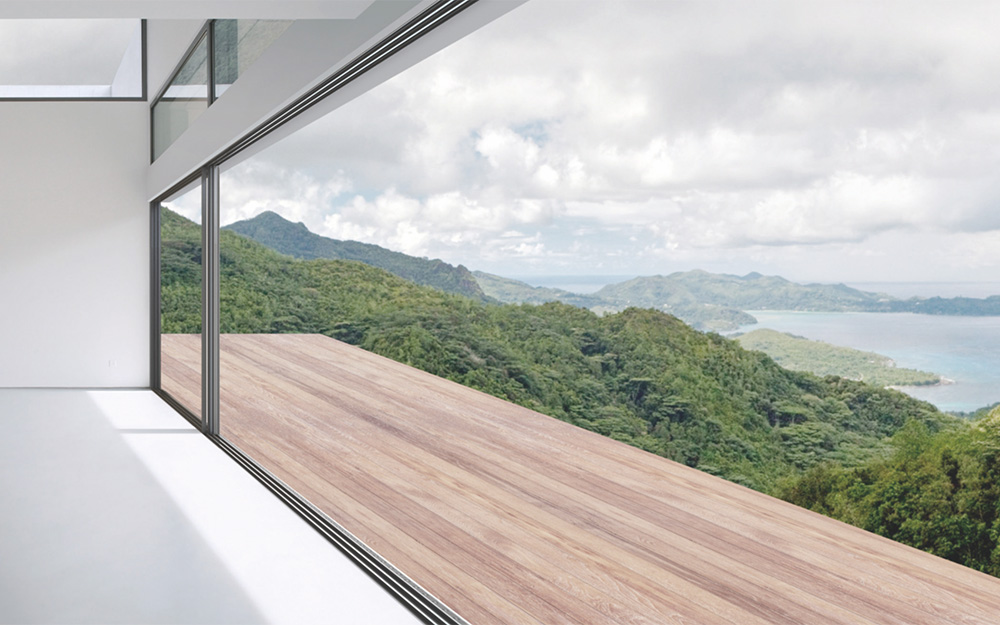

    OD.L125B series narrow sliding doorOD.L125B series narrow sliding doorOD.L125B series narrow sliding doorOD.L125B series narrow sliding door
